MCU-30 SERIES TENSION TYPE COMPUTERIZED METERING DEVICE FOR PRECISE TENSION
① MCU30 Equipped with auto cutting and feeding function，26 programs and 8 tensions for each program.
TR thread release device: a) release the thread for cutting thread easily after sewing b) suitable for overlock with chain cutter and vacuum
Main Features： 1,equipped with 32-bit CPU processor, PLC control panel, and tension sensor to identify and adjust for precise tension. 2, when feed dog can’t feed normally for multiply layers of fabrics, the MCU 30 device can still remain tape tension. 3, this device can be widely used in smooth materials. 4, with high precision, the device can help to reach the requirement for some complicated process and special materials.
Standard accessories:
| Specifications | |
|---|---|
| Name: | Computerized Tension Metering Device |
| Model: | MCU30 |
| Memories: | 26 programs, 8 tensions for each program |
| Processor | PLC system |
| Tension: | 1~99 |
| Needle setup: | |
| Mount: | Mounted on head of overlock machine |
| Max feeding speed: | 5500rpm |
| Max width of tape: | 30-50mm |
| Power supply: | AC100~240V |

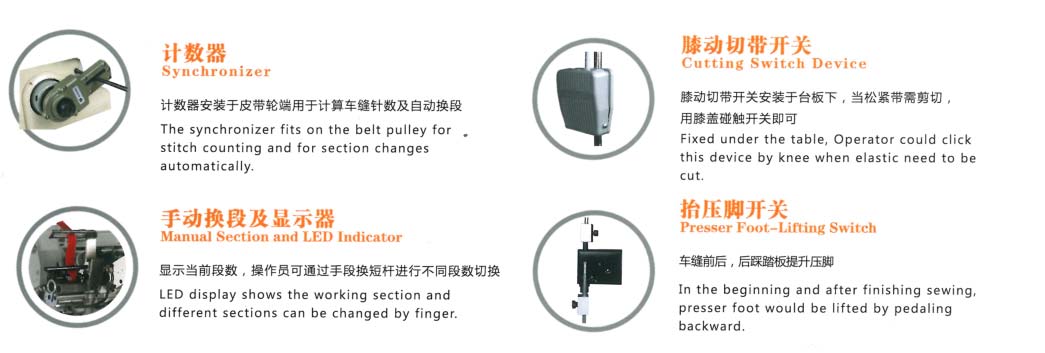

| Standard accessories: | synchronizer，presser foot lifting device, cutting switch device, manual selection and LED indicator |
| Suitable for Machine brand: | Siruba, Pegasus, Lijia, Juki, Kingtex, etc. |
