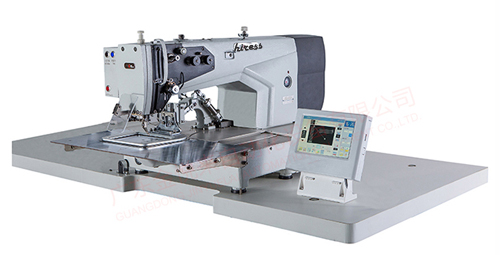

HR-G1510 COMPUTERIZED PATTERN MACHINE |
|
|
specially for luggage, hand bags, and wallet sewing.
Main Features:
1, equipped with electronic thread clamp which makes sewing more efficient and more easy.
2, equipped with imported guider, imported shuttle base, which makes stitches of both sides even.
3,
equipped with energy saving servo motor and step motor.
4, LCD touch panel for easy editing and selection.
5, 1GB memory for 999 designs.
6, double push rod
Specifications:
1, Max sewing speed: 2800spm
2, needle gauge: 0.05 - 20mm
3, Max stitch: 20,000 stitch/pattern
4, hook: two times rotary hook
5, outer foot lift height: 30mm
6, outer foot lift: pneumatic
7, Mid-foot lift height: 15mm
8, Motor: 750W direct drive servo motor
9, panel: 7.5" LCD
10, voltage: 220V - 240V
11, thickness of material: 1 - 10mm
G1010: 100*100mm
G2010R: 200*100mm
G2516: 250*160mm
G2516R small mouth: 250*160mm
G3020R: 300*200mm
G4516R: 450*160mm
G5050R: 500*500mm
G6040R: 600*400mm
G6080R: 600*800mm
G50100R: 500*1000mm
|

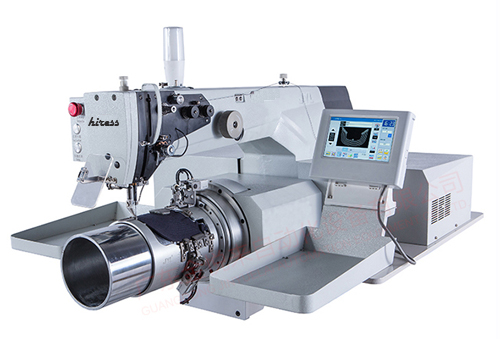

HR-1510R COMPUTERIZED SEWING MACHINE FOR CAP |
|
|
Specially for curve sewing on luggage, cap, heels, etc.
Main Features:
1,7.5" touch LCD screen for easy operation.
2, auto-alarm for thread breaking
3, equipped with needle guard for breaking.
4, X-shaft curve feeding.
Main Specifications:
1, working size: 150*100mm
2, needle gauge: 0.05-12mm
3, max sewing speed: 2300spm
4, max stitch: 20,000stitches/design
5, memory: by USB
6, outer foot lifting by pneumatic
7, mid-foot lifting height: 15mm
8, motor: 750W direct drive servo motor
9, voltage: 220V - 240V
|

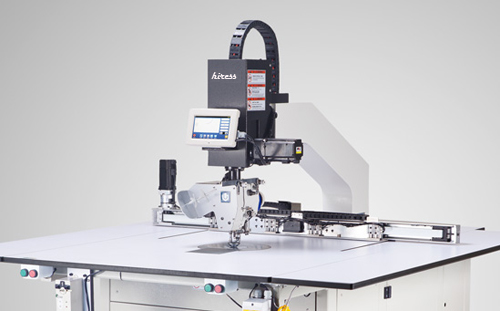

HR-12090 OUTTRIGGER AND ROTARY, HEAD ADJUSTABLE PATTERN MACHINE |
|
|
Equipped with 360 degree head rotary, and head height adjustable, mini-oil, direct drive servo motor.
Main Features:
1,large sewing area as 1200*900mm for various sewing purpose
2, suitable for down jacket, luggage, leather goods, upholstery, cushion, and quilting, and also suitable for small articles sewing.
Main Specifications:
1, max sewing speed: 2800spm
2, needle gauge: 0.05-12.7mm
3, pneumatic: 1.81L/min
HR-6060HP: 600*600mm
HR-10060HP: 1000*600mm
HR-10080HP: 1000*800mm
HR-12060HP: 1200*600mm
|
|
|
